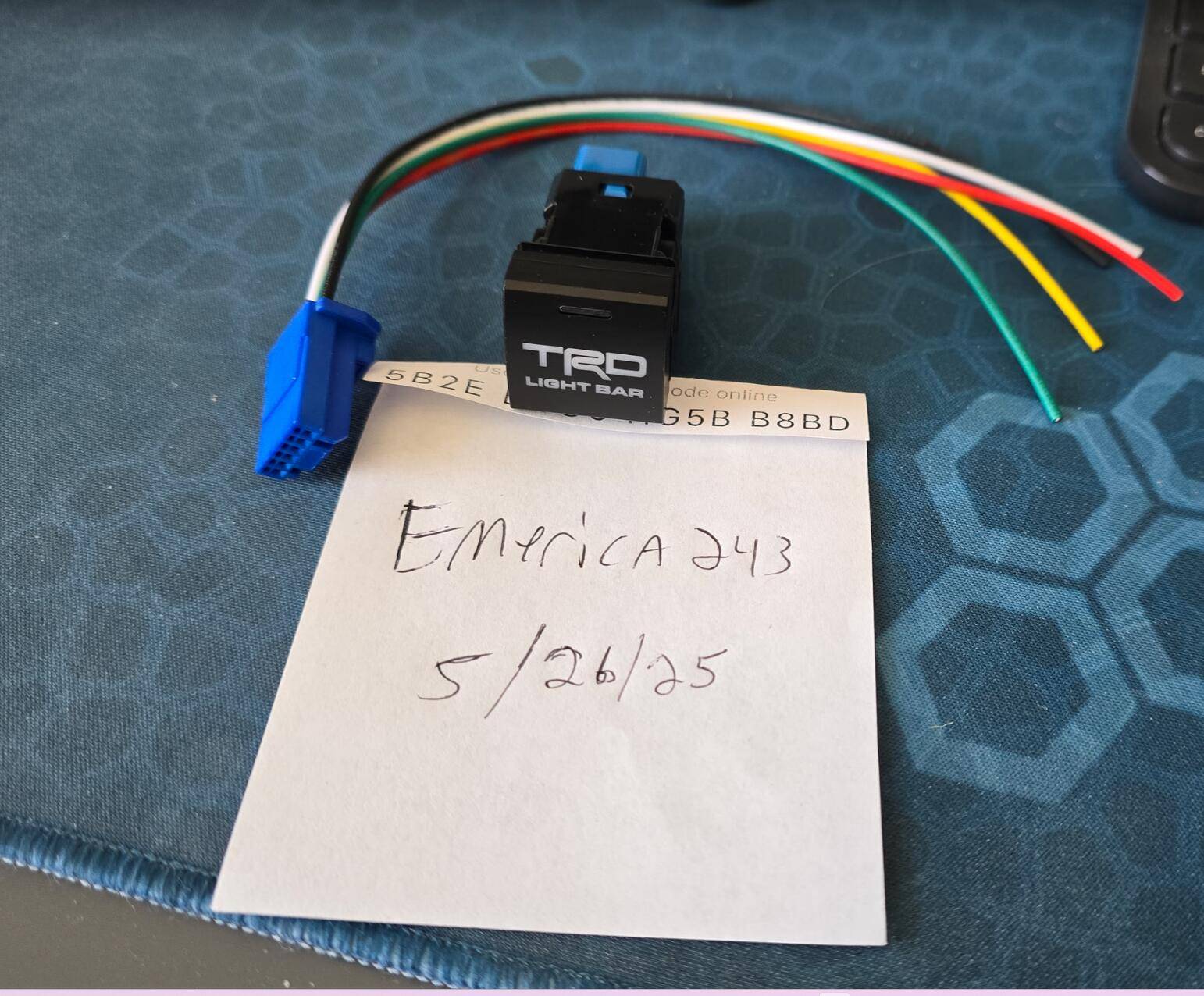

TRD Light Bar Dash Switch - $35

[emerica243]

Dont need it. Easily wire an accessory to your blank switch plates.

https://raveoffroad.com/products/trd-light-bar-dash-switch

Fits:

2022+ Tundra

2023+Sequoia

2024+ Tacoma

2025+ 4Runner


Square Pigtail Wire Guide:

Green: 12V OUT - Sends Power to Light Bar

Yellow: 12V IN - Tap into Dash Light Illumination Circuit

Red: 12V IN - Power Source

Black and White - Ground

Rectangle Pigtail Wire Guide From Left to Right:

Green: 12V IN - Power Source

Red: 12V IN - Sends Power to Light Bar

Red: 12V IN - Tap into Dash Light Illumination Circuit

Black- Ground
