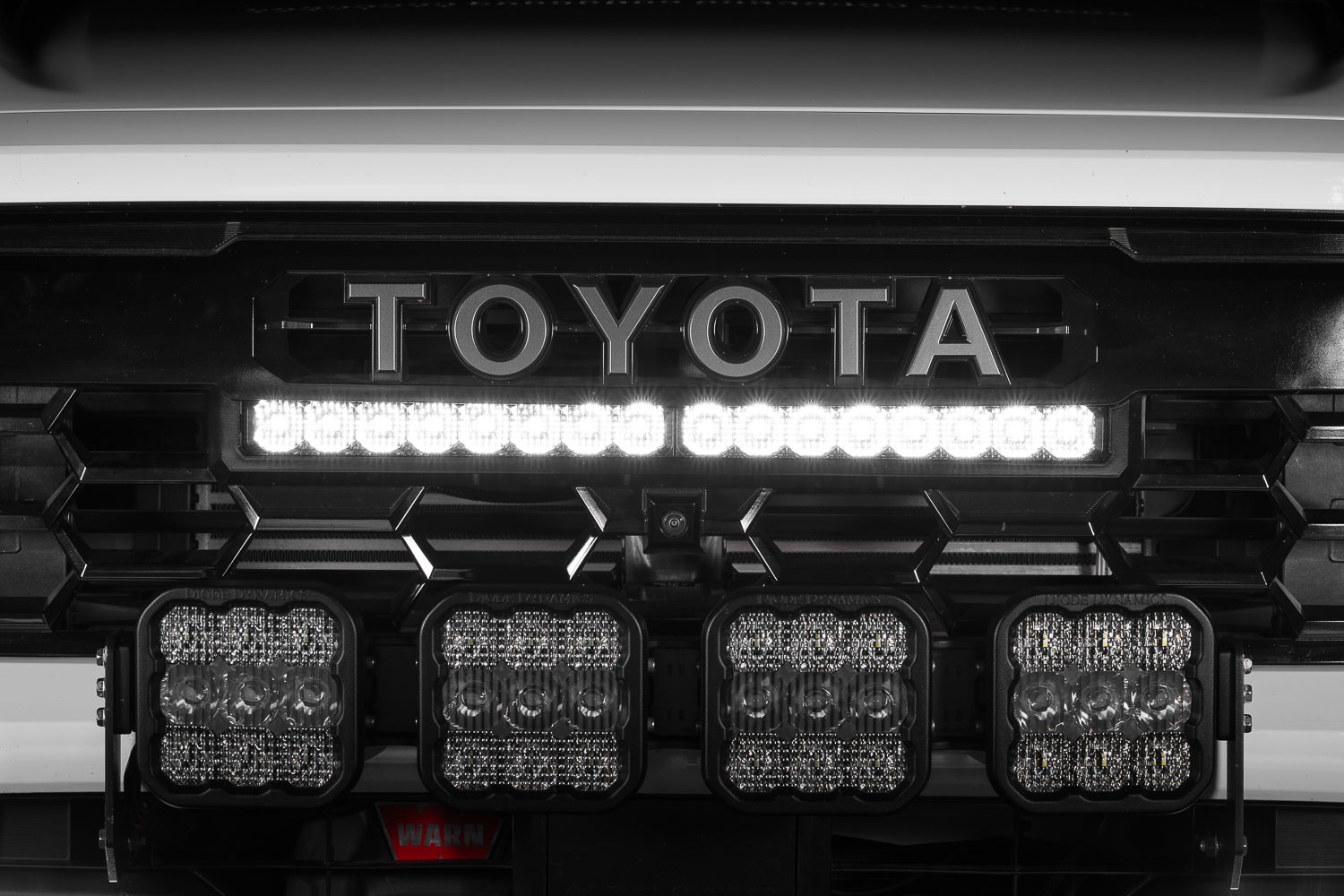

The TRD Pro Grille LED Light Bar Kit for the 2024+ Tacoma adds powerful auxiliary lighting with a clean, OEM-style appearance. These application-specific brackets have been CAD-designed to mount a 20-inch LED Light Bar behind the grille using factory mounting points. No cutting or drilling required! With higher light output, modern optics, and greater intensity than anything else on the market, the new Stage Series Lightbars are the most capable lightbars available today!

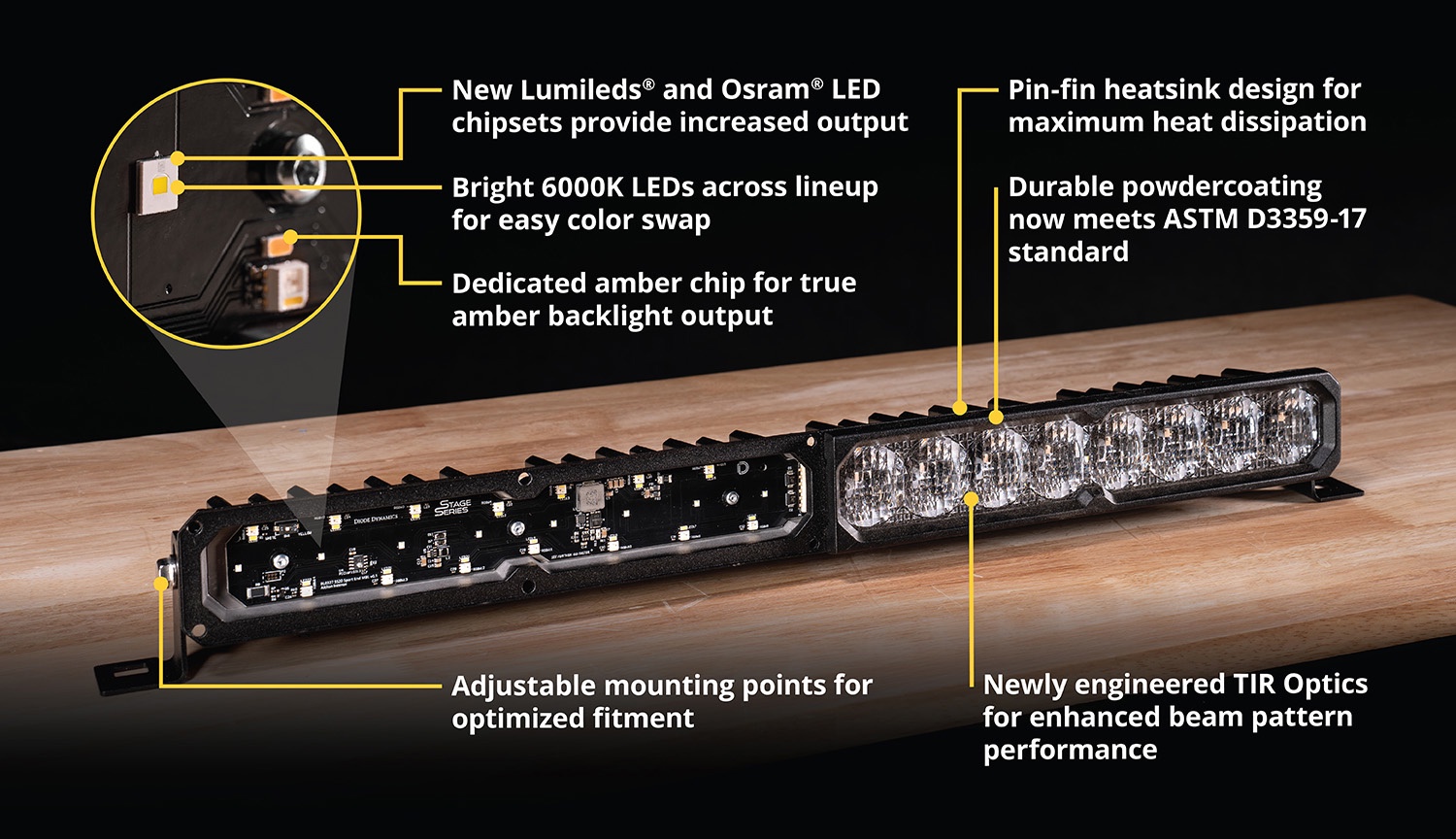

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

Functional Beam Patterns. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before.

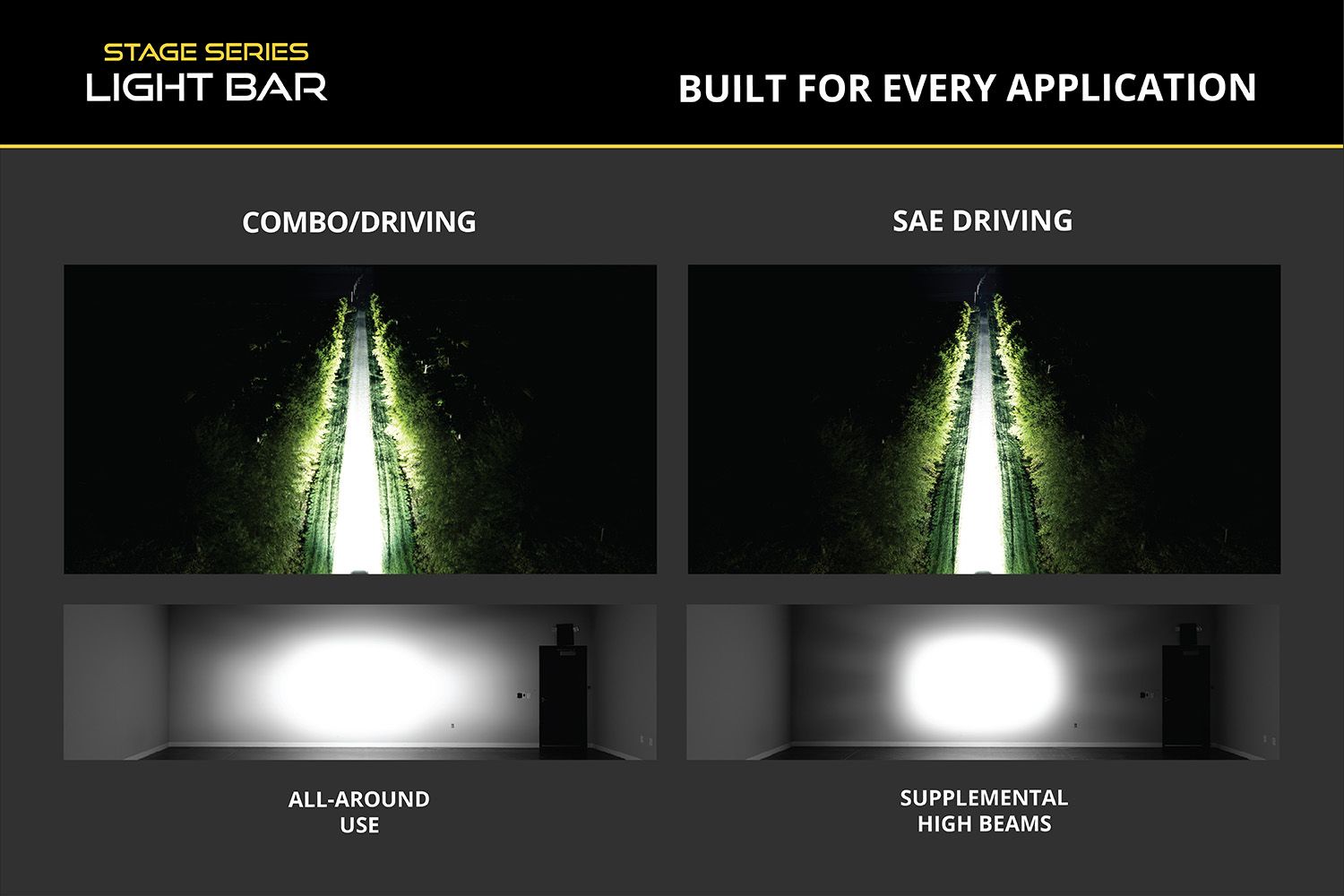

The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Everyone wants a great all-around light, and while other options on the market try to tackle this by combining two patterns, the resulting output is less than desirable–spot gives you a harsh hotspot, while a flood or wide pattern produces unwanted glare and wasted light. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination. It’s the ideal choice when you want one bar that can handle just about any situation, and it elevates the standard for what a Combo light should be.

SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees. If you’re looking to add extra distance and output to your setup, this is the perfect option.

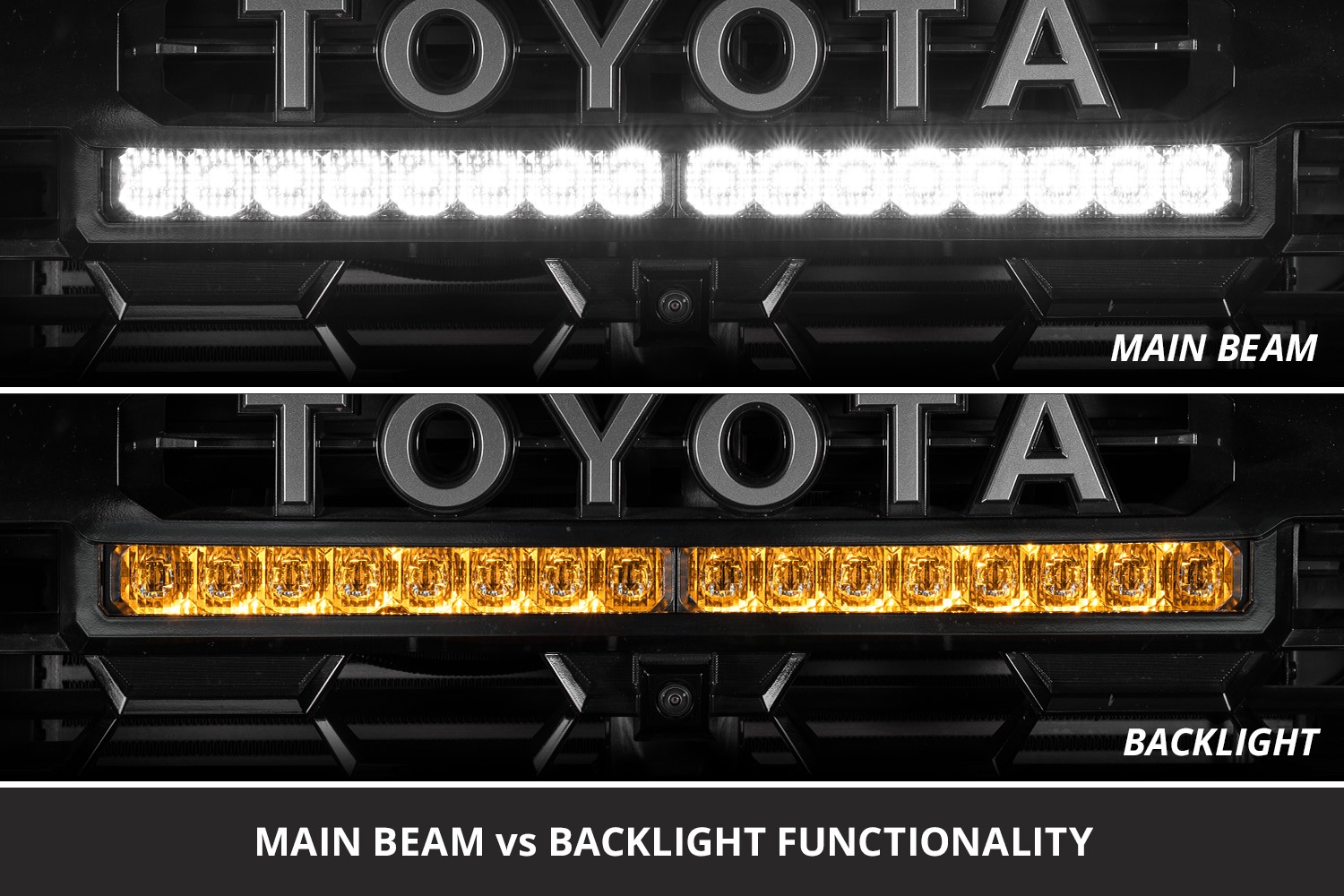

Amber Backlight. All Stage Series LED Light Bars include an integrated amber backlight that fully illuminates the TIR optic, providing distinctive accent lighting and enhanced visibility when parked or stopped on the trail.

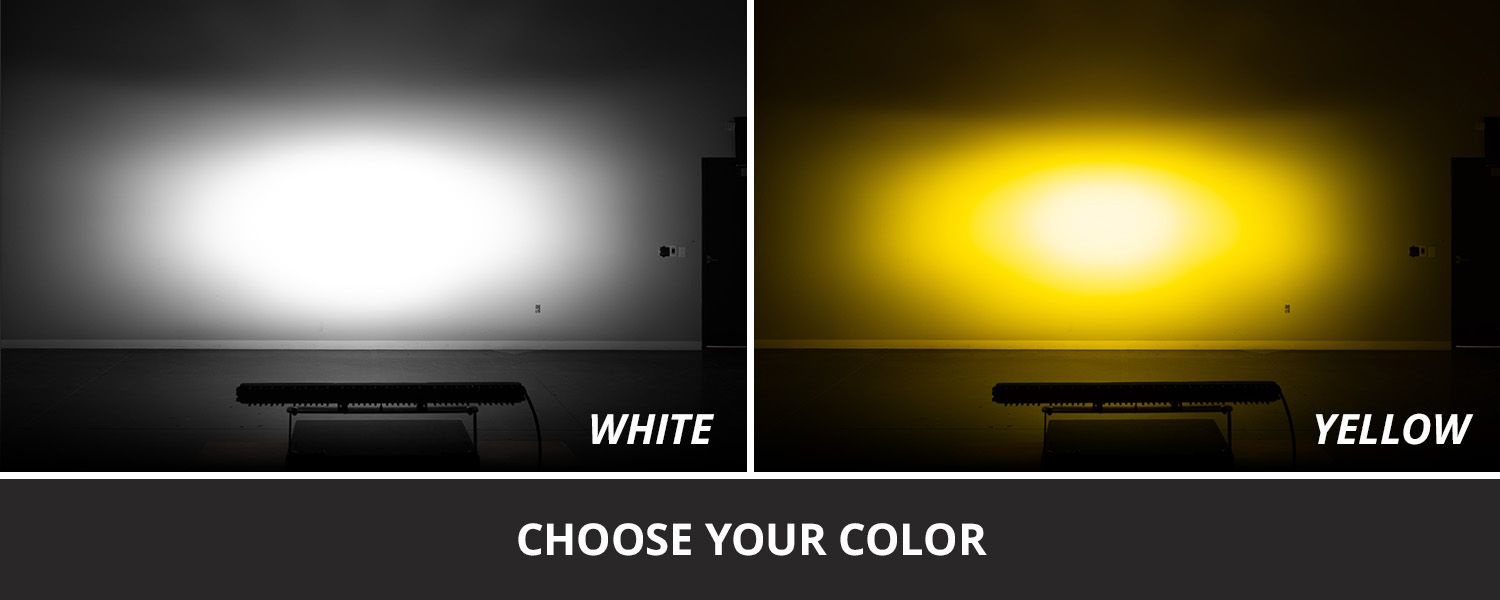

White or Yellow. This Stealth LED Light Bar Kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

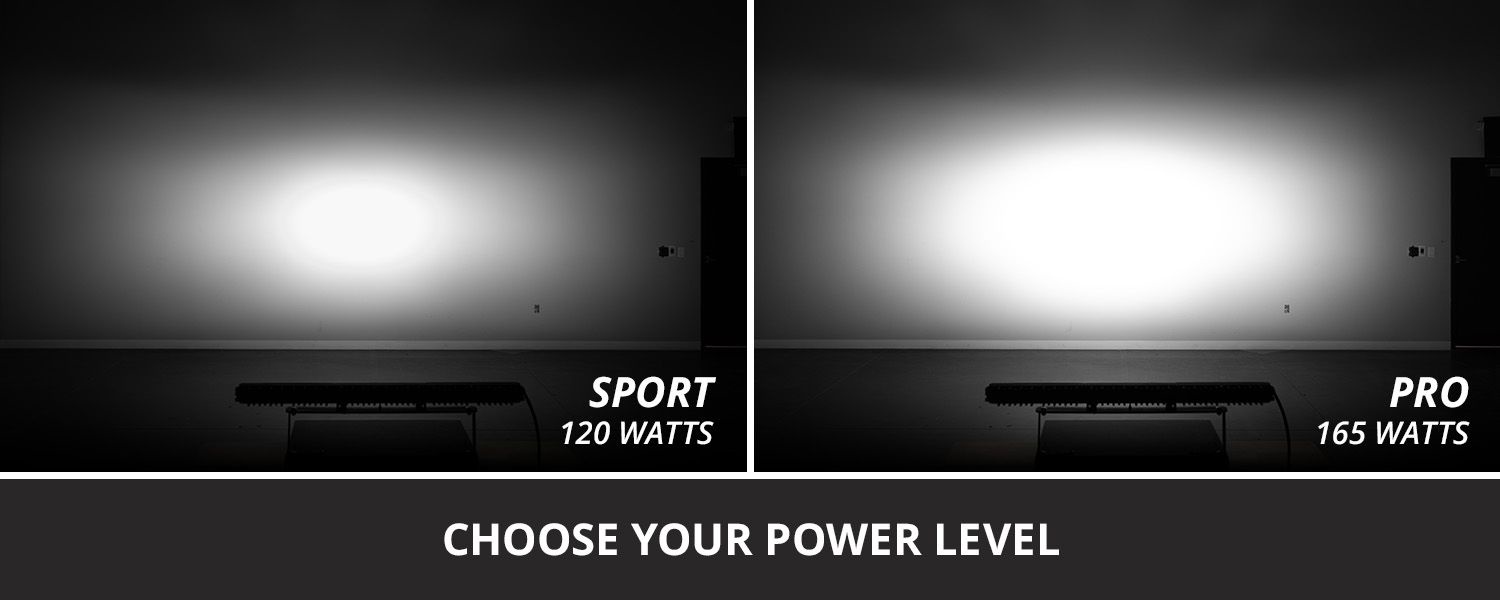

Choose Your Power Level. The SS20 Light Bar is available in two different power levels. The Sport model delivers impressive performance and value, while the Pro model provides a noticeable increase in total output and intensity for those who demand the highest level of performance.

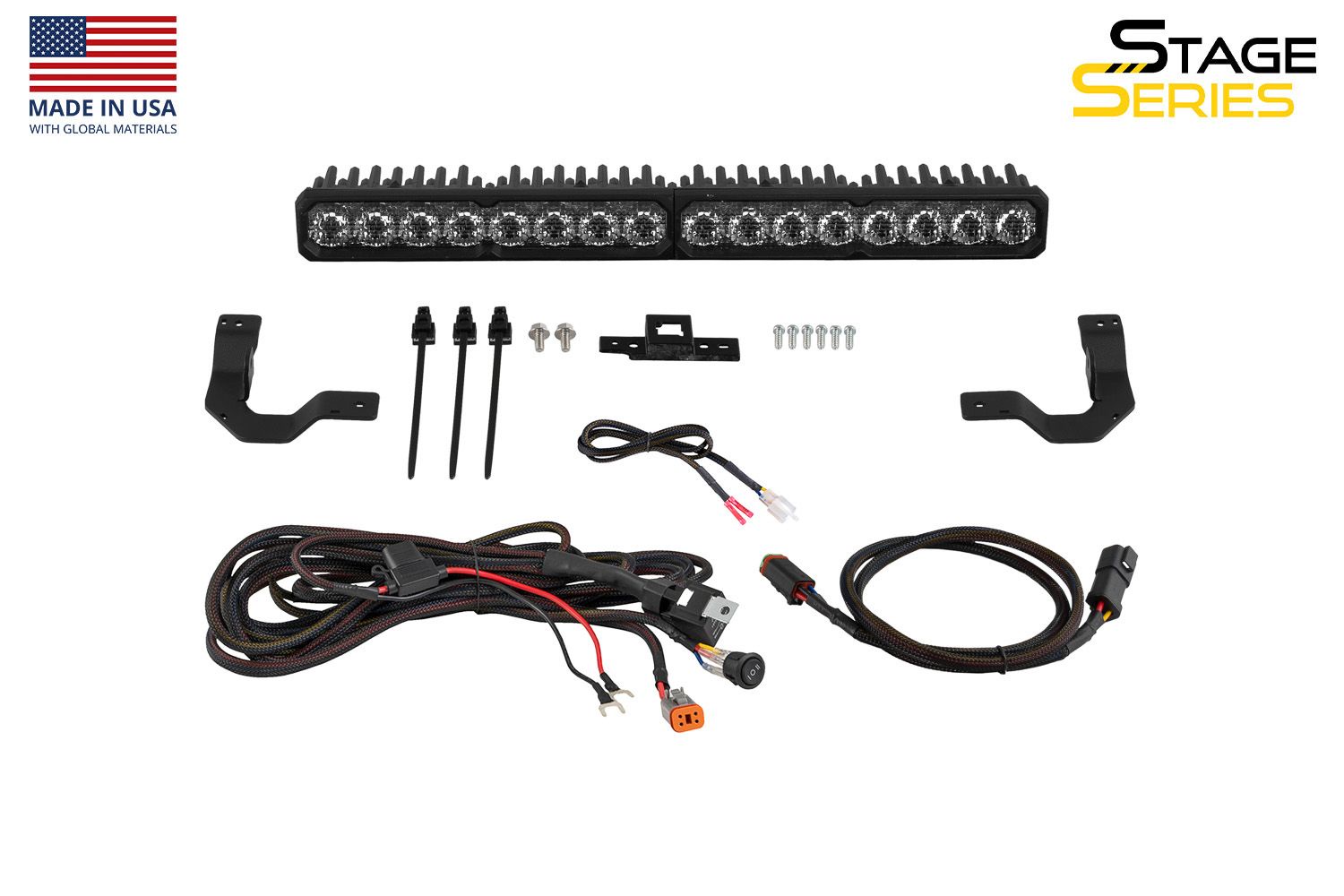

In the Box:

• One (1) TRD Pro Grille Light Bar Bracket Kit
• One (1) SS20 Stage Series LED Light Bar
• One (1) Wiring Harness
• Three (3) Zip Ties
• Mounting Hardware

Warranty: Lifetime warranty

Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment
NOTE: If you are installing this kit on a TRD Pro, you will need to use the included wiring harness with a new switch to control this light bar. The factory switch cannot be used to control this light bar.

Make: Toyota
Model: Tacoma
Years: 2024, 2025, 2026



Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.



Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Questions/Concerns. Please go ahead and give us a call at 314-205-3033, Monday-Friday 10 a.m.- 5 p.m. CST, or shoot us an email at [email protected], and our in-house US service team would be happy to help you with that.

Hours: Monday-Friday 10 a.m. - 5 p.m. CDT
Email: [email protected]
Phone: 314-205-3033

Sponsored



[maxx075]

Unless I'm not understanding correctly, I believe you have a typo in your first paragraph talking about the brackets.

30" light bar won't fit using the factory mounting points. That should be 20". Unless again, I'm not understanding correctly.



[Diode Dynamics]

Unless I'm not understanding correctly, I believe you have a typo in your first paragraph talking about the brackets.

30" light bar won't fit using the factory mounting points. That should be 20". Unless again, I'm not understanding correctly.

Thanks for the catch! We updated that line and informed our team to review the website listing additionally.



[maxx075]

Or, save your money by not changing out the grill and spend it on a bumper where you can mount some real lightning that's protected.
DISCLAIMER, NOT SAYING, DIO DYNAMIC LIGHTS ARE BAD BECAUSE I HAVE THEIR ROCK LIGHTS. ON MY TRUCK, JUST IN THAT TINY APPLICATION,
Just saying for the amount of work necessary to change out the grill.

You have to remove the front either way lmao. Grille is like a 30 minute job total. Changing out the bumper is going to be a lot more work if you have to cut and whatnot.

Not sure if you have some special invisible force that will repel rocks or not, but either location has the potential to catch a rock. So not sure where the "protection" piece comes in.



[StreeTaco]

No where in the original post is anything said about changing the grille. This light bar replaces the oem light bar found on some trucks.
