Cali raised dual switch backlight. And relay location.

[maxx075]

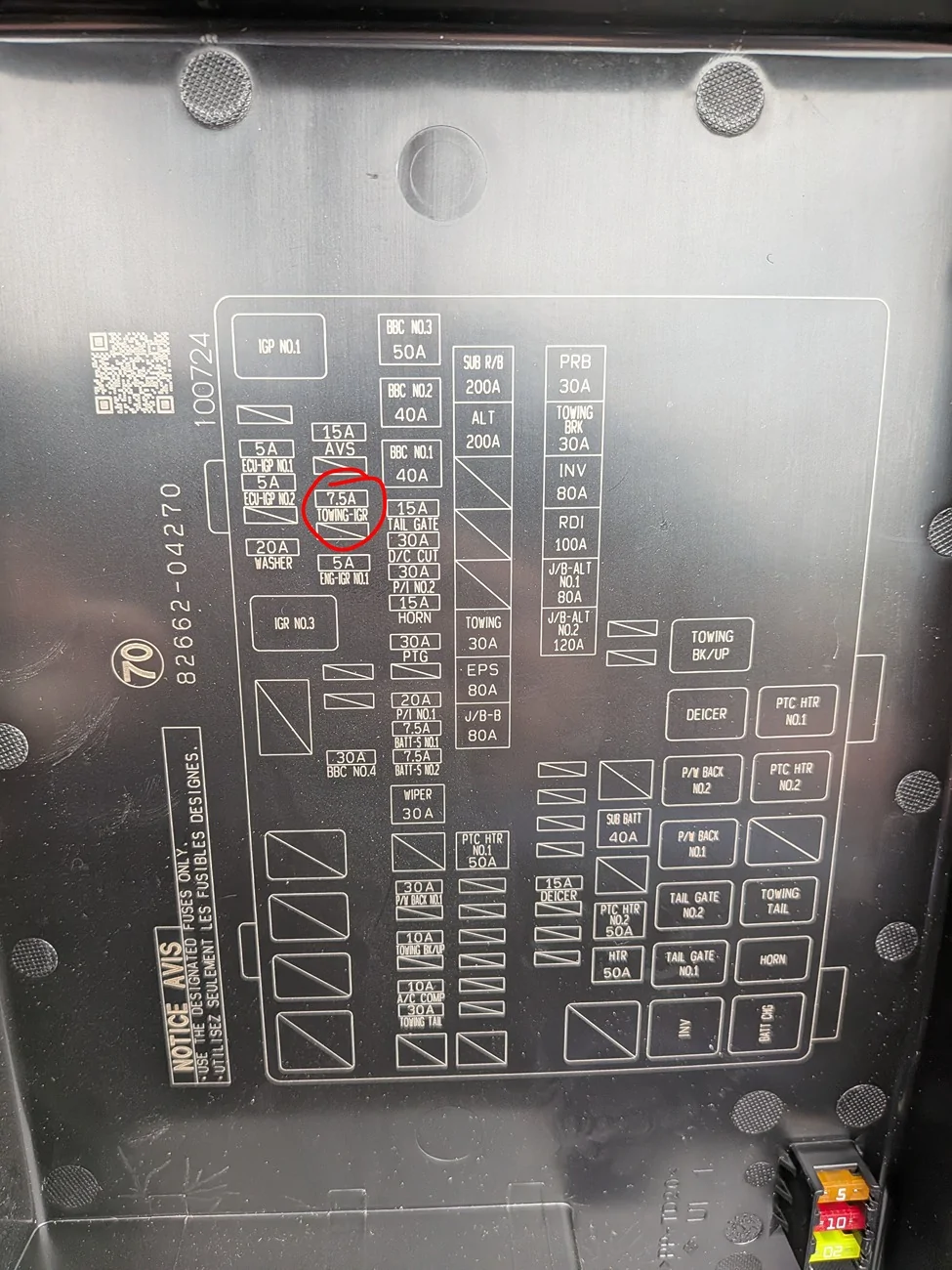

Alright, so my neighbor is an electrician and tested this slot for me. It's putting out 12v so I could put an add a fuse there with a 7.5 mini, but what is "towing IGR" ? There is currently no fuse in it, but only gets power when the ignition is on.

Ignition switched power for towing lights, etc.

Sponsored



[Deleted User 412290]

Ignition switched power for towing lights, etc.

Got it! So would be fine to use if I don't plan on towing I guessn Which one would you tap into ?



[Deleted User 412290]

Talking to myself at this point but hoping someone might have some insight

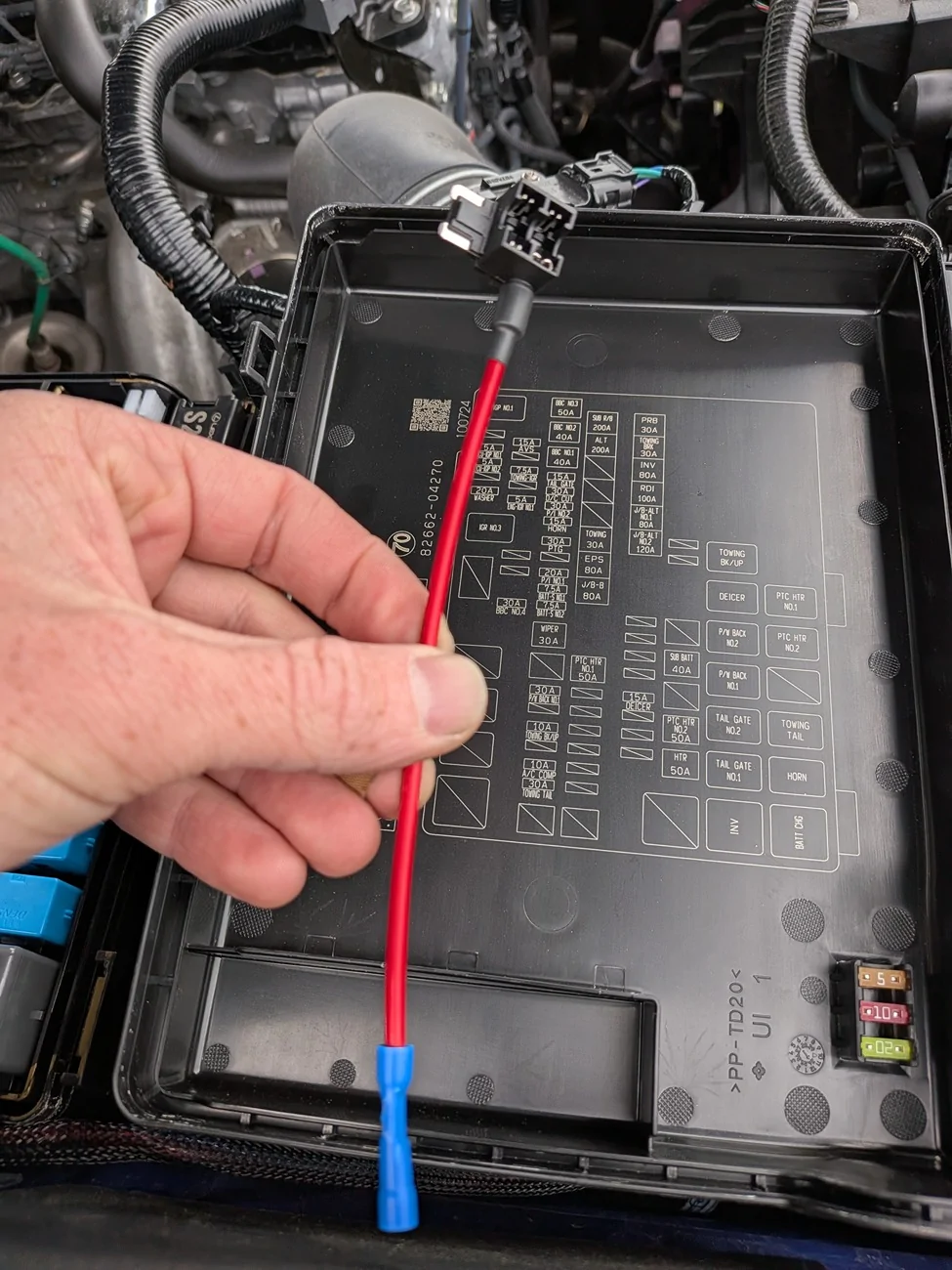

So put an add-a-fuse on towing IGR, works great in that the Lightbar will now shut off when the truck does, but I was expecting it to power back up when I start the truck if I left it "on" when I shut the truck down. Instead I've got to hit the button at every start to turn it on. Something in the relay ? Switch ?



[paskell]

I searched and didn't find my answer, sorry if I missed it.

I have the Diode dynamics lightbar sitting in my garage. It come with a 3 way rocker. Red = power, Blue = backlight, Yellow= main beam. Pretty straight forward. Cali raised switch wire colors make no sense, but whatever, at least they have a diagram.

My question is, where is the best place to get backlight power/ dash circuit if I want to so that the button is illuminated when the chosen light is on ? Should I just add-a-fuse ? If so, where would be the best spot ?

Did you wire this up. Just found your post. I didn't have the diagram. I was just winging it and could not figure out the connections.
