TRD Cast Aluminum Running Boards - Anyone Installed Themselves?

[Quinn]

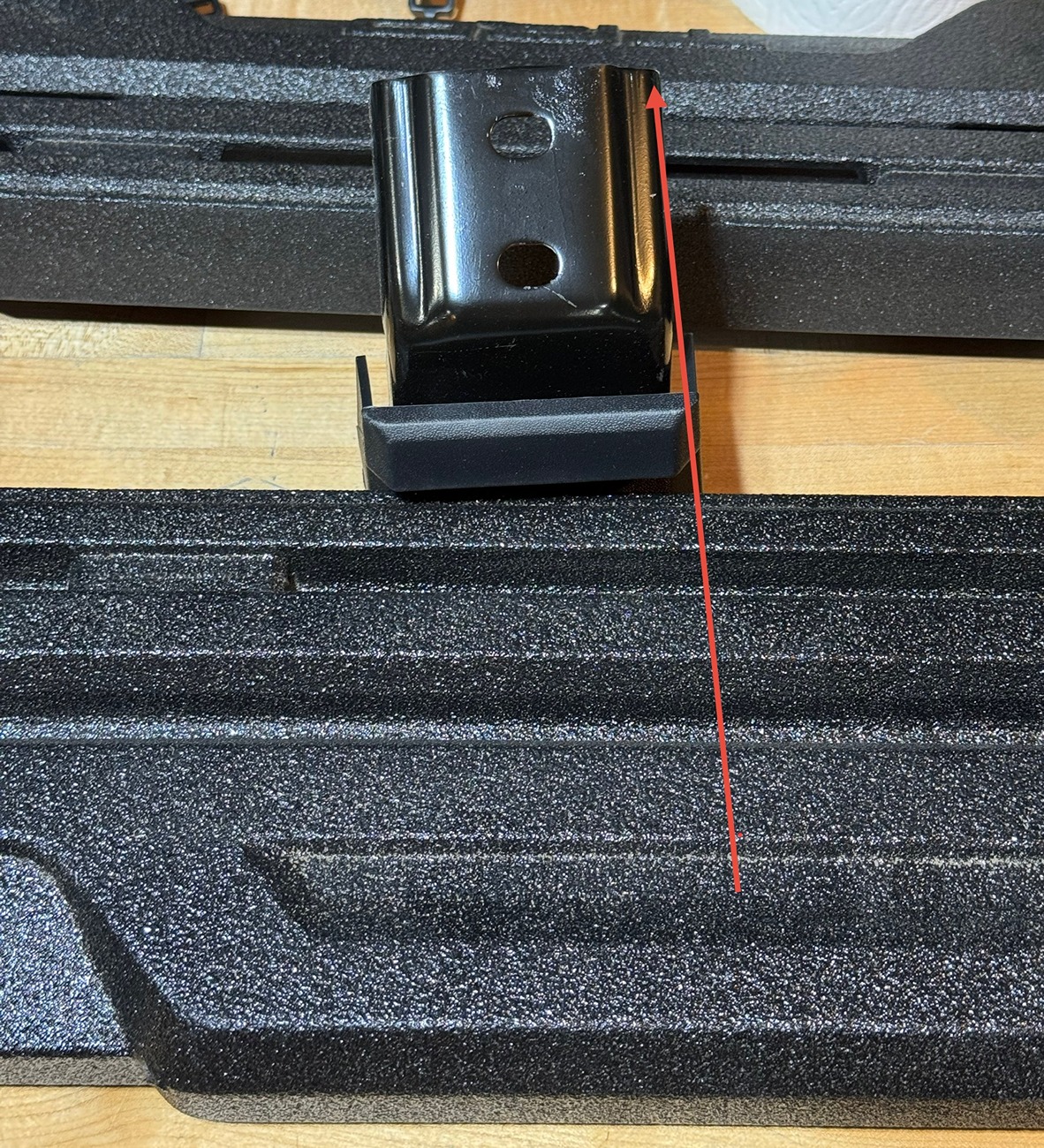

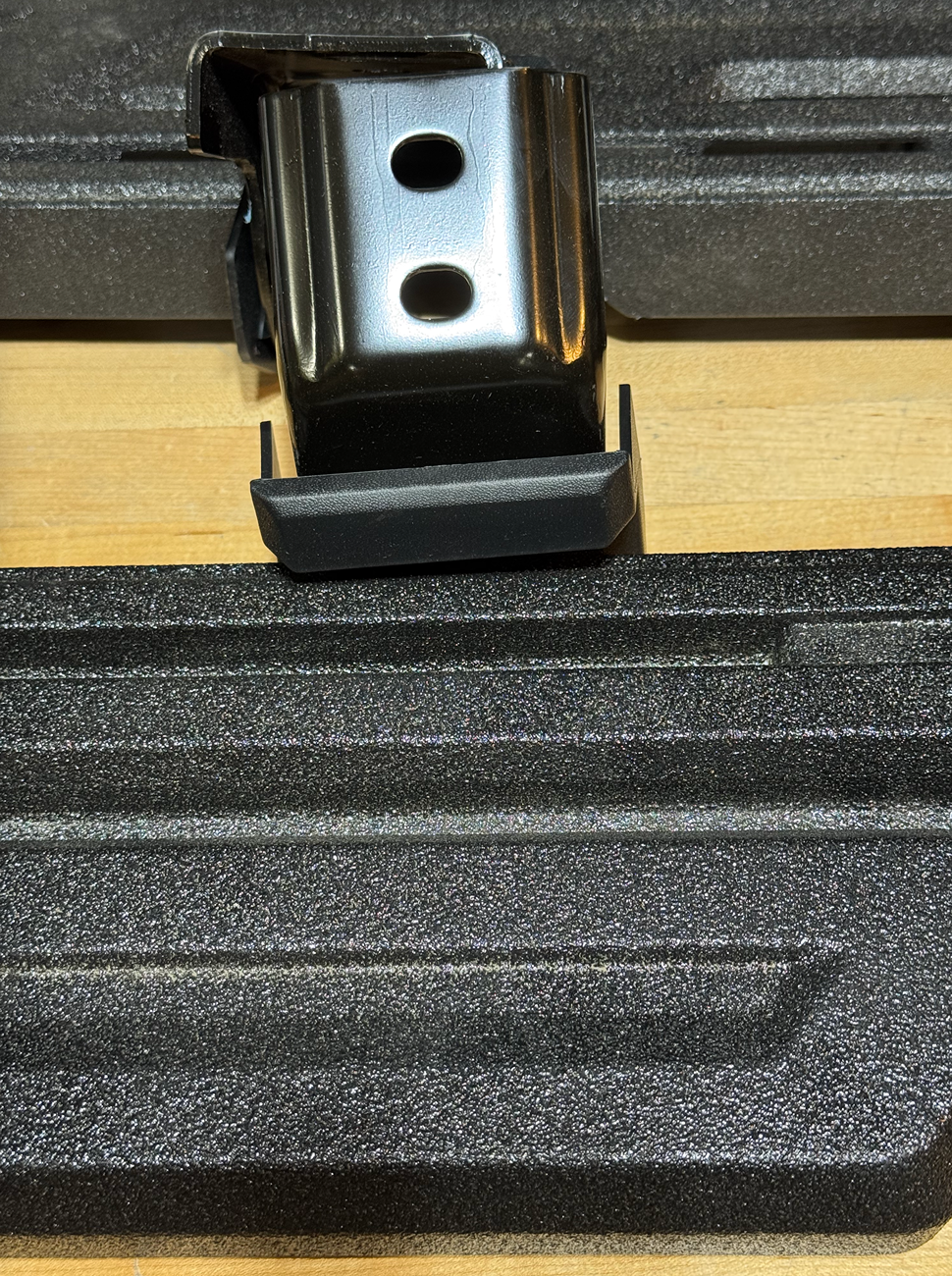

I just received mine for a planned at home install, and all the mounting brackets are angled back. Of course the installation instructions are worthless and do not mention anything about re-alignment, so curious if anyone else encountered this. The bracket holes all appear straight/90 degree so I'm assuming these will need some sort of correction.

Sponsored



[Tac931]

I didn't have to make any adjustments. Take off the 4 bolts under truck , then the boards go on



[Quinn]

I didn't have to make any adjustments. Take off the 4 bolts under truck , then the boards go on

Do you recall the brackets on your set being angled as well?



[Tac931]

I'm not sure they can adjust. If the holes won't line up then there may be a problem. 15 minutes install for each side



[maxx075]

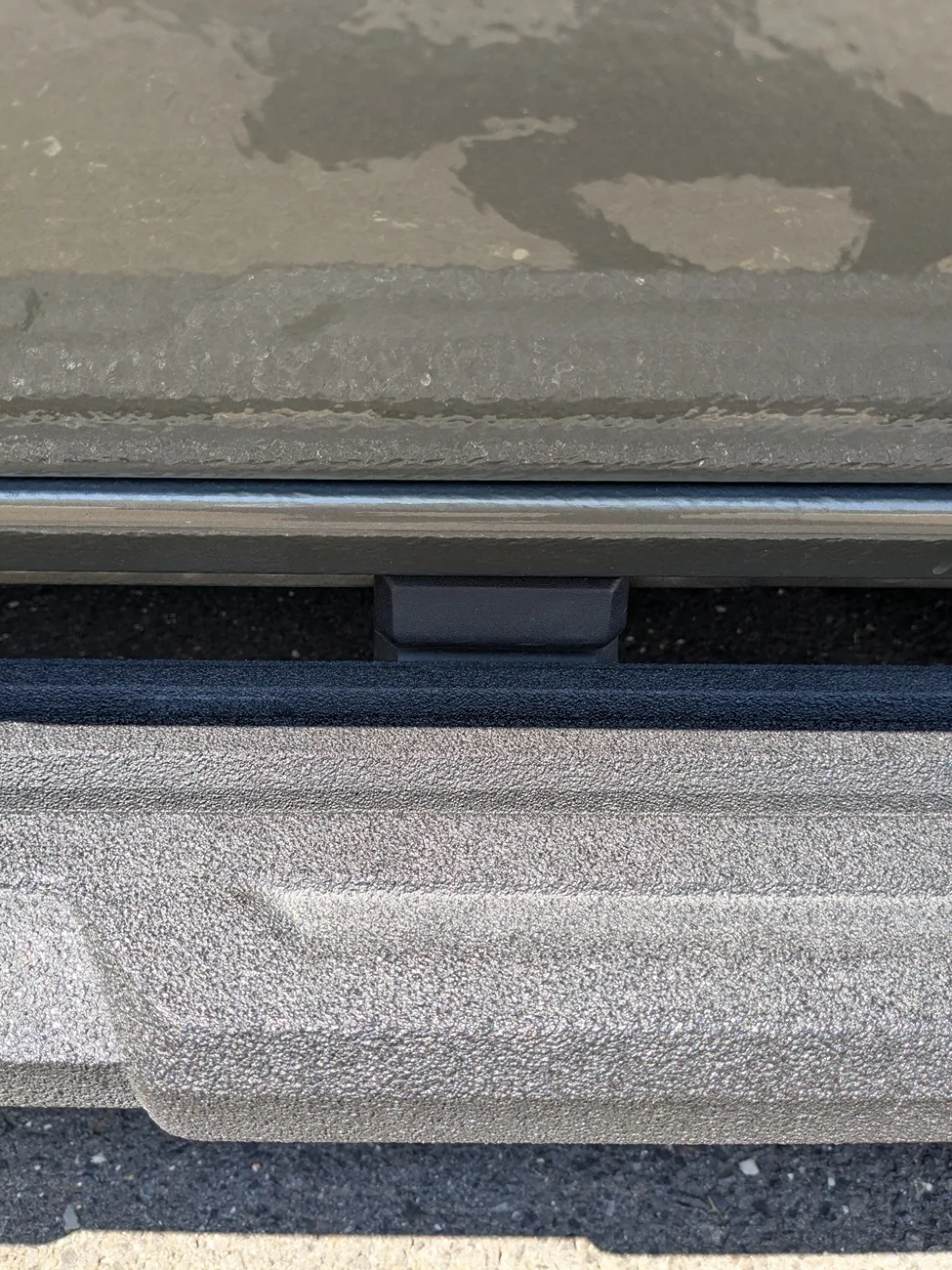

Have you tried having someone hold them in place (or loosely bolted them in) to see if they look square?

I honestly can't remember what my brackets looked like, but I just put them on and they lined up fine. You may be overthinking it.



[sabinjo]

I had the same exact issue with mine, all of the brackets were off and a bunch of the bolt holes didn’t line up. After thinking something was wrong and that I’d have to send these damn things back, I realized I was overthinking it way too hard.

Simply loosen bolts holding the bracket to the board itself a little so they can move, then thread all the bolts into the pre-threaded holes underneath the truck, realign the brackets and tighten them once the running board is loosely bolted underneath and then tighten everything up.

It’s really that simple.



[Ray T]

Don’t remember mine being angled but I could be mistaken
